4G61 Turbo

[rpm2racing]

Project The 4G61 Turbo succesfull.The car run at WSID Australia.
Best Time 10.09sc with OEM 4wd gearbox.

Specs

Mirage AWD

· 4-Cylinder Class
· Street Chassis
· 1.6L Mitsubishi 4G61 Block
. Custom Wiseco Pistons 85mm CR 8.5:1 (60psi boost)
. Custom Rods (250hp per rod)
· 2g cylinder head
. ARP Head Stud

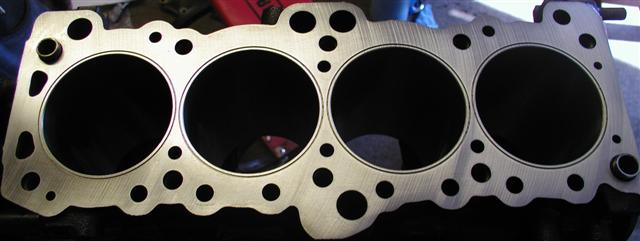

. Copper Head Gasket
. 272 Cams
. Kiggly Racing Valve Spring Kit (12.000 rpm Rev)
· fabricated sheet metal intake manifold and 1g throttle body
. 1600cc Injectors
. Aeromotive 1000hp Fuel Pump
. NOS
· Garret GT40 Turbo hanging on fabricated header
· OEM AWD Transmission
. Xtreme Carbon Clutch and Drag Flywheel
· Microtech LT10s with X4 IGN Box
· Methanol VP M1
. DOT Hossier Tyer

590 WHP on Dyno Dynamic

Cost about Aud $20K



[mista_M]

damn dude..dts awesome for a 1600 tho~



[boyzone]

Any idea on the ECU?



[mag9556]

Fuh.. 590 whp.. can play with those big sport car liao man...
salute!



[rpm2racing]

Any idea on the ECU?

1.6L running with Microtech LT10s Fully data Logger.
And Millions thanks to TRP give me free tunning their AWD dyno.



[rpm2racing]

Now we are working together with TRP to make a strong stroker Kits 1.9L
Hope can get low 9sc with AWD Auto Transmission.



[SkYwAlKeR]

any pics of ur ride or the engine bay specifically??..



[rpm2racing]

engine bay and turbo manifold,sory the pic not too clear.taking from my hp.



[SkYwAlKeR]

engine bay and turbo manifold,sory the pic not too clear.taking from my hp.

wow... ur turbine is menacing...



[mag9556]

Shittttttttttt...................
the turbine as big as the engine head... salute man.............



[boyzone]

Is cool ...
10 sec car.



[rpm2racing]

why can i make a high boost????...do what we do



[SDF]

kbd180 :

respects to you mate for speaking out the truth.

i've had enough lame a$$ thought from RPM , especially in the forced induction part whereby he 'claims' the turbo's we distribute ain't as good as his 'buds' in Aussie or US are...well..i'm waiting for him to reply me before i get serious with him.

We have been in the Turbocharging business for the last 19years and here comes a lil guy trying to flame us in a internet forum.

Kudos to you mate..well said on the engine built..anyway he can't make it here in KL, which is why he has to flame his way to fame.



[SDF]

RPM2 aka Shah :

FYI - the turbo in your pic ain't a GT40..if you built it..you would have known the true spec of the turbo, it's infact MUCH bigger..so i doubt it's you who built it since you don't even know what you're talking about.



[jinkl]

hahahha, isnt tht a borg warner turbo ? shah cakap aper nie
