DIY Cold Air Intake Hose with Super Heavy Duty Industrial 3" PU Hose

[sr18autech]

Bought 3" super heavy duty industrial PU hose from Huakenny (Bought some times ago, but no time to do the CAI, until today). It's so durable and tough, and it cannot bend more than 80degree, so I have to come out with a DIY, thus this morning, did all the process below.

And the result was Superb Engine Response !

The Finished Product

Stuffs - 3" PVC Elbow, 3" PVC Pipe, Drill Saw, 3" Alloy Funnel, 3" & 5" Hose Clip, Pipe Tape & PVC Glue

Bosch Drill Kit

Circular Saw, variable sizes

Choosing the right size of the Circular Saw

Close up of the Circular Saw

Circular Saw mounted on the Bosch

The location of the funnel intended to be placed

Ready to drill

Drilling (Only took less than 10 seconds!)

Done!

The 3" Elbow and the Pipe

The 3" Heavy Duty Industrial Flex Hose

Fitted perfectly

Applying PVC glue

Attaching the elbow to the flex hose, with a 3" hose clip

Elbow in place, fitting the 3" Aloy Funnel

Wrapping the Aloy Funnel with white tape

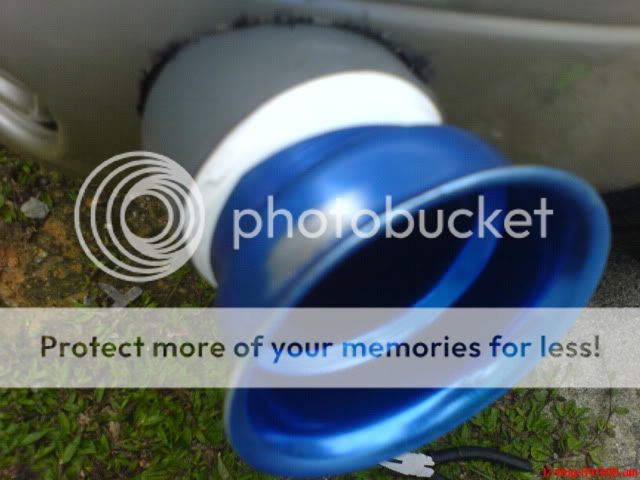

Fitting the Aloy Funnel to the elbow

Very-very tight fit, need some effort...

A view from inside

Fastened the 3" flex hose to the airbox

Airbox connected to the flex hose

STOCK engine bay, hehe

Be sure, to make the CAI airtight, amazing effects will happen.

PS: They are ppl debating whether it will suck debris or water into the CAI n damages the engine, but HEY, if there's flood or really dusty/sandy area, everyone is SMART enough not to drive over those places.....right ?

Adios :)
