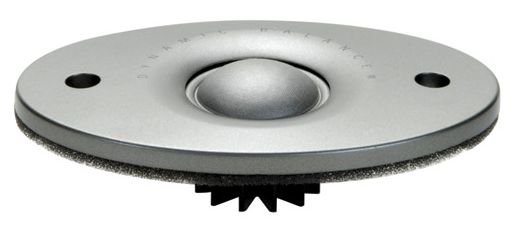

PEERLESS (Tymphany) 1" Dome Tweeter (4ohm)
Model: Tymphany (Denmark)
1” Treated Soft Dome with Silver coated for durability.

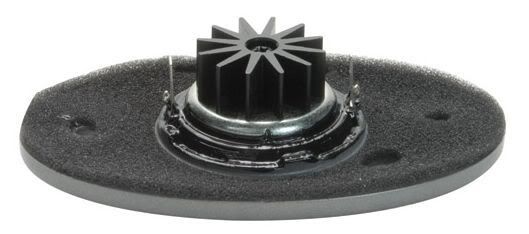

Neodymium magnet with rear Heatsink Fin for Higher Output.
Polymer truncated Oval faceplate with Recessed waveguide loading
Frequency response extends past 30 kHz.
Same motor/diaphragm as Vifa/Peerless V-line BC25SC06-04
OEM for Polk Audio (USA).
Specifications:
*Power handling: 50 watts RMS/100 watts max
*VCdia: 25mm
*Impedance: 4 ohms
*Re: 2.9 ohms
*Frequency response: 1,350-30,000 Hz
*Fs: 1,350 Hz
*SPL: 94 dB 1W/1m
*Dimensions: A: 2-5/8" x 4-1/8", B: 1-7/8", C: 7/8"
Price: Sold out!
Contact: 012-9142998 (Lim)

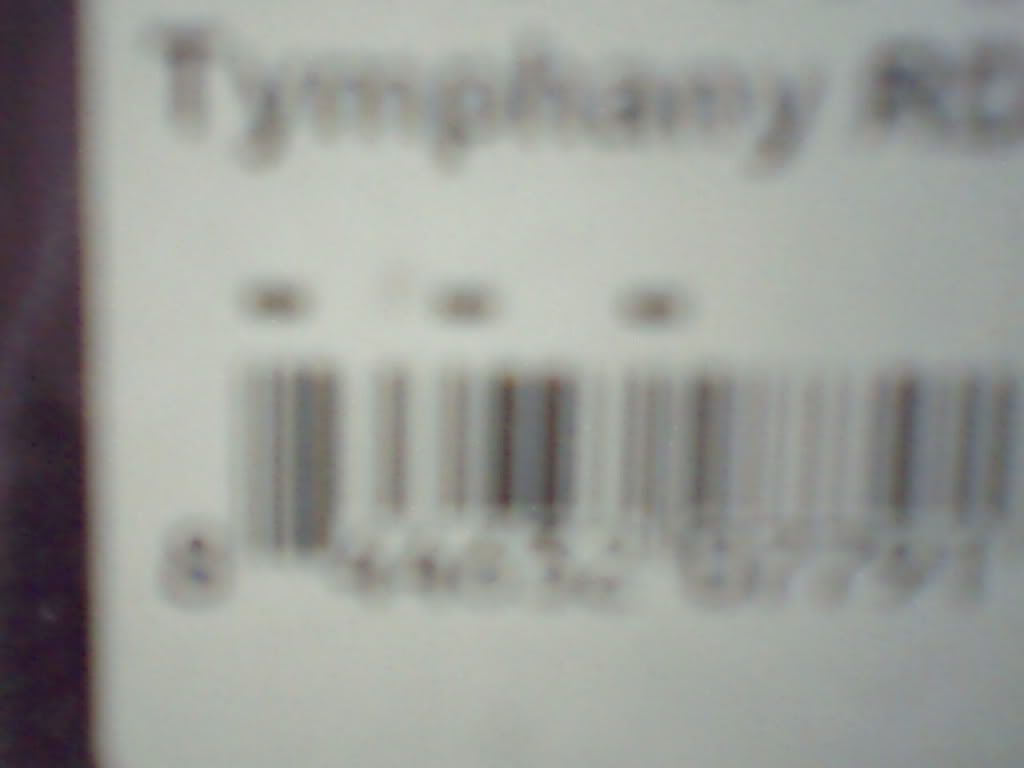

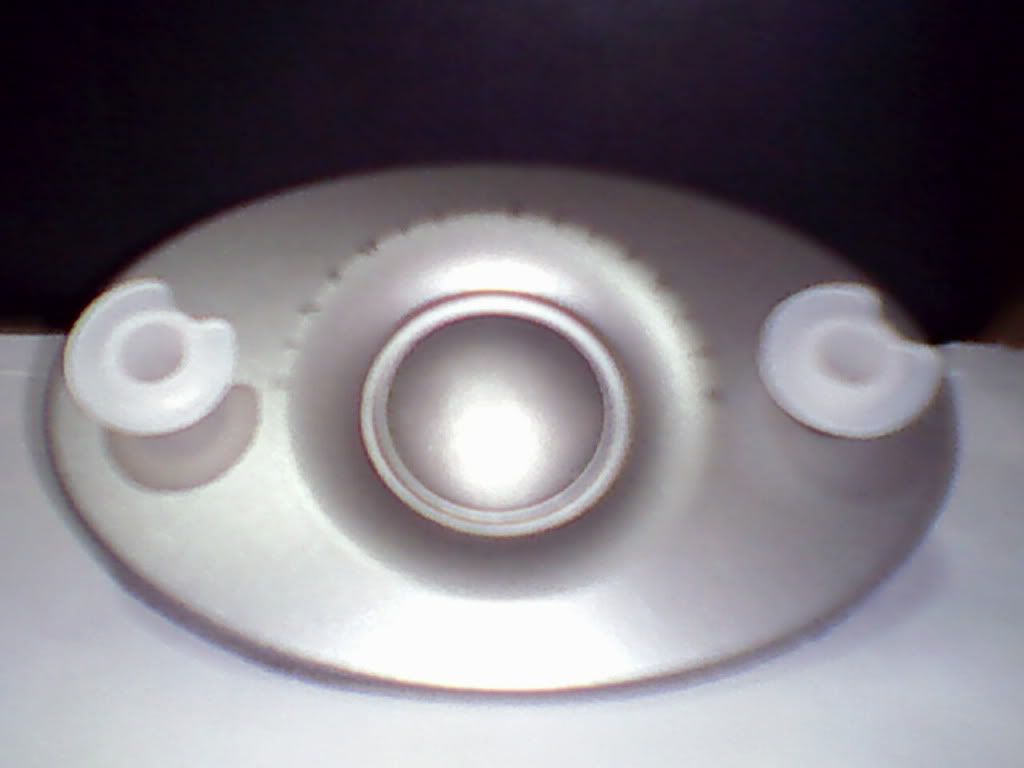

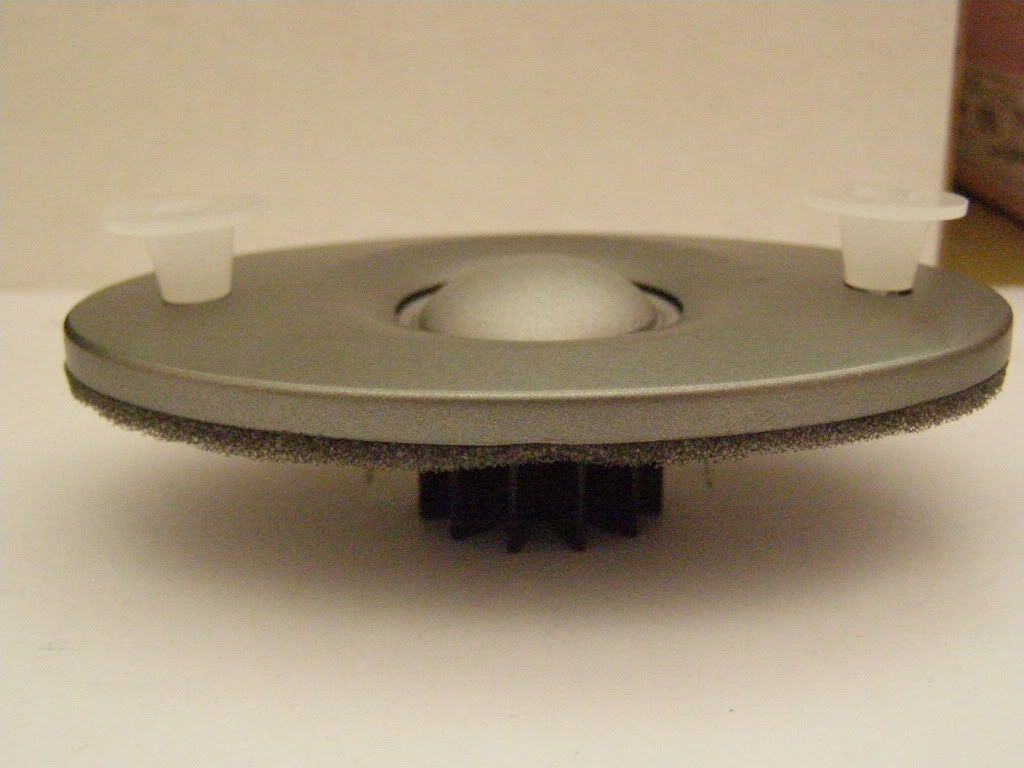

Bump: sorry, some photos are handphone captured,so the image is not clear.
Bump: sorry, some photos are handphone captured,so the image is not clear.
Model: Tymphany (Denmark)
1” Treated Soft Dome with Silver coated for durability.
Neodymium magnet with rear Heatsink Fin for Higher Output.
Polymer truncated Oval faceplate with Recessed waveguide loading
Frequency response extends past 30 kHz.
Same motor/diaphragm as Vifa/Peerless V-line BC25SC06-04
OEM for Polk Audio (USA).
Specifications:
*Power handling: 50 watts RMS/100 watts max
*VCdia: 25mm
*Impedance: 4 ohms
*Re: 2.9 ohms
*Frequency response: 1,350-30,000 Hz
*Fs: 1,350 Hz
*SPL: 94 dB 1W/1m
*Dimensions: A: 2-5/8" x 4-1/8", B: 1-7/8", C: 7/8"
Price: Sold out!
Contact: 012-9142998 (Lim)
Bump: sorry, some photos are handphone captured,so the image is not clear.
Bump: sorry, some photos are handphone captured,so the image is not clear.
