[DIY] How to decrease engine bay temperature

[me2kimi]

Hi all DIYer's. This are the method that I make to decrease engine bay temperature.
I don't have original picture, so I just grab it over the net.

1- Wrap extractor- engine bay temp significantly reduce after install this.

2- Raise a hood- With hood raised, hot air from engine bay can ventilate from the gap of the hood and wiper cover.

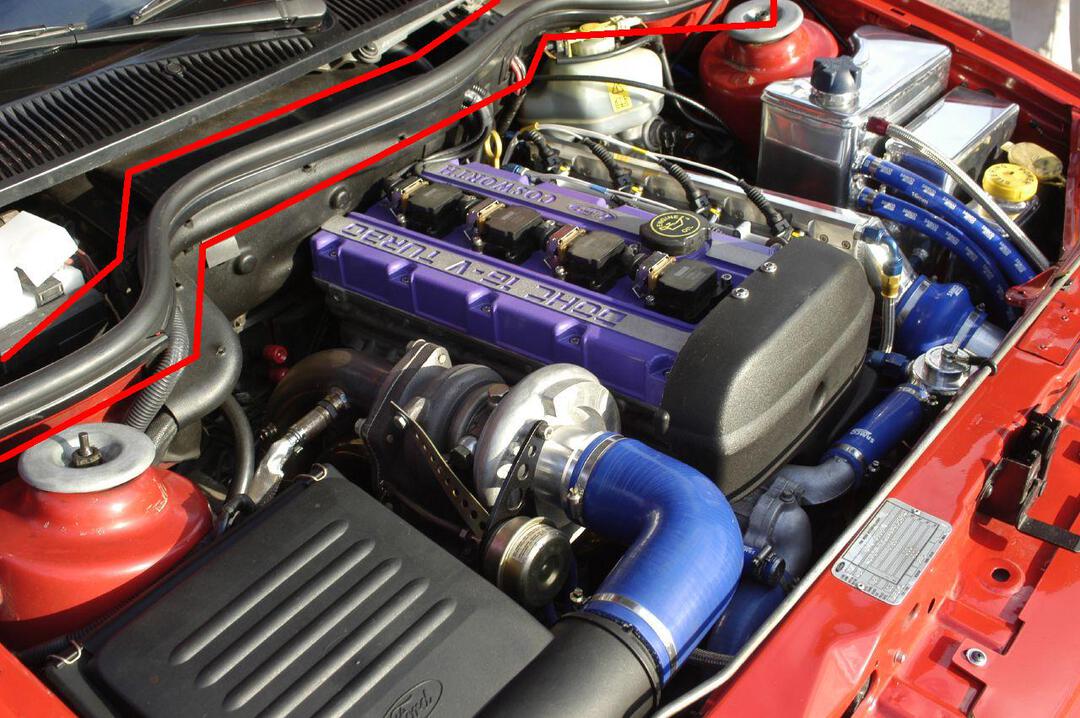

3- Remove the wiper cover rubber as in the redline in the picture. It will make better air ventilation.

4- Cold Air Intake CAI. With CAI, the temp during cruising at 3 pm is 34.5 deg celcius. (Measured at outlet of the CAI hose).



[Lean]

Nice one there.



[me2kimi]

Thanks bro



[DanzEterna]

by removing the wiper cover rubber, wont water or rain seep into the engine bay?



[me2kimi]

by removing the wiper cover rubber, wont water or rain seep into the engine bay?

So far no problem after removed the rubber.



[vr2turbo]

by removing the wiper cover rubber, wont water or rain seep into the engine bay?

The rubber is higher up, water will drain into wiper motor area. Maybe some water will still splash into engine bay, but more actually comes in from the front and from underneath and most splash up by the belting....



[me2kimi]

You are correct bro. Thanks for explaining it. BTW, here is the picture vaporized wind screen when hot air blowing out from engine bay during raining.



[vr2turbo]

You are correct bro. Thanks for explaining it. BTW, here is the picture vaporized wind screen when hot air blowing out from engine bay during raining.

I was about to ask about this.....



[l2s_turbo]

I also removed mine.. as raised hoods sometimes poses a danger whereby if the mechanic or other ppl is not careful when they are raising your hood, it might break your windscreen.. or sometimes you yourself when you are in emergency cases and you forgot... the tip of the hood will hit the windscreen then = hailat.com



[kurt_629]

1- Wrap extractor- engine bay temp significantly reduce after install this.

2- Raise a hood- With hood raised, hot air from engine bay can ventilate from the gap of the hood and wiper cover.

3- Remove the wiper cover rubber as in the redline in the picture. It will make better air ventilation.

4- Cold Air Intake CAI. With CAI, the temp during cruising at 3 pm is 34.5 deg celcius. (Measured at outlet of the CAI hose).

thanks for sharing.

may i ask about the thermal wrap..
I'm referring to the titanium wrap whereby it can withstand higher temperature..

the cons of wrapping the thermal wrap is that it become moist and will cause rust. normally people will do ceramic coating/power coating/ high temp paint to protect it..
which is not a cheap thing..

i actually had an idea, not sure if workable..

after wrap, spray with silicon spray. silicon spray is often use in auto bay to protect rubber and less friction etc, most important.. its waterproof..

i read that people in states are doing that..

hence, out of curiosity, i also intend to do the same and give it a try..
not really hunger for extra hp/performance but rather in maintaining the car..

any comments?



[vr2turbo]

The silicone spray can withstand high temperature?



[kurt_629]

The silicone spray can withstand high temperature?

Yeah, silicon spray is commonly used in workshop by mechanics, it acts as a coating only.

Basically, to protect the surface from oil, water, dirt etc.m..

The prevention of the heat is lies with the wrap primarily



[me2kimi]

Is it silicon spray is same like wd-40?
Actually I've sprayed with high temperature exhaust paint before wrap it.

Sent from my Galaxy Nexus



[Izso]

me2kimi - I'm about to start on the header wrap like yours. How many clamps did you end up using? And where did you buy yours?



[me2kimi]

Sorry bro, I've forgot how many clamps that used. If not mistaken 4 clamps on the top, 2 clamps at the bottom. You can use drive shaft boot clip, but I used a hoce clip, the one like water hose clip. Easy to fastern and hard to loose.

Sent from my Galaxy Nexus
