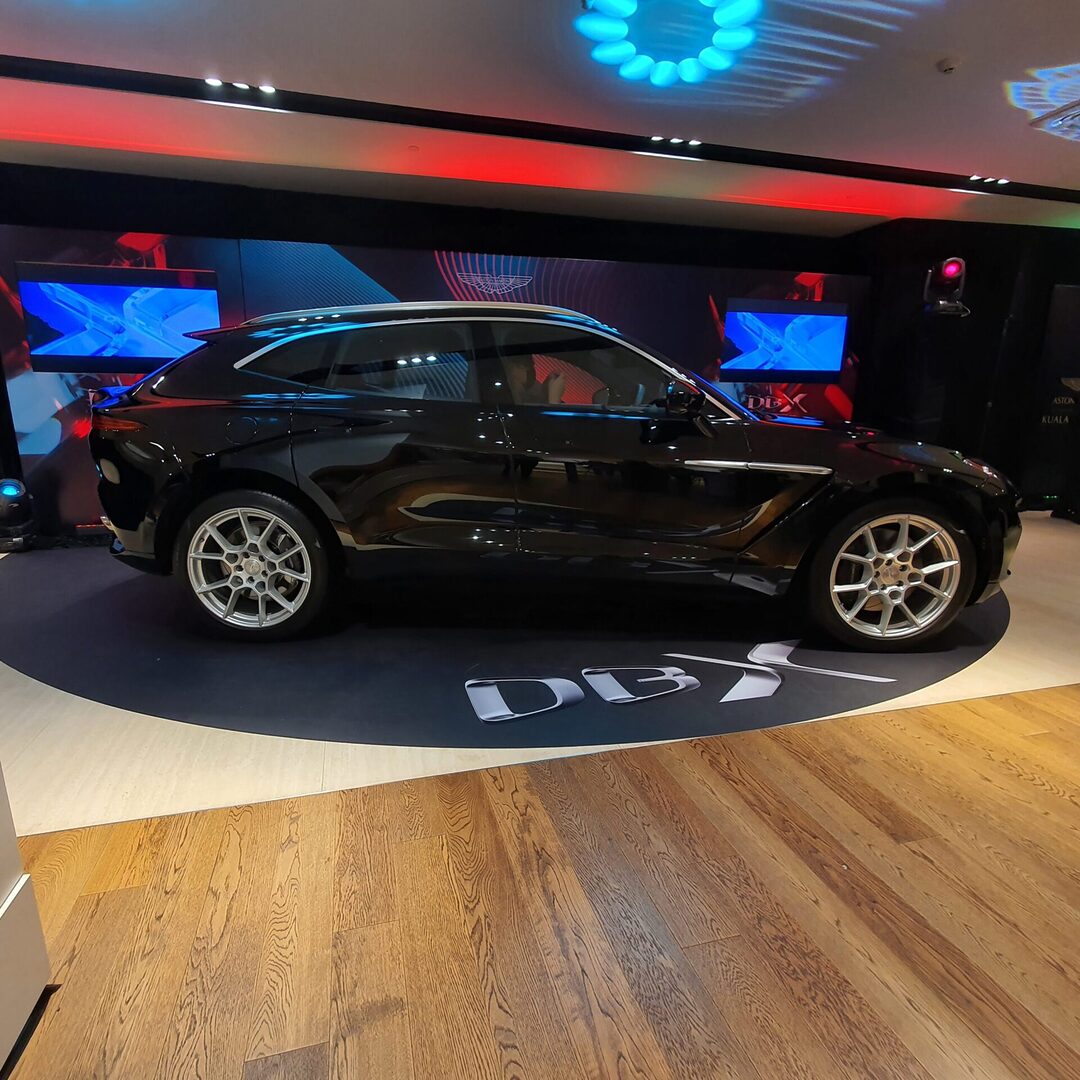

Aston Martin's first SUV arrives Malaysia! The 550ps DBX looks more like a sportscar on stilts and raises the bar for sports SUV with its dedicated chassis, built on a rigid, lightweight bonded aluminum construction.

4.5 sec / 550ps / 700nm / 4L V8 twin turbo / 9 speed automatic / 291kmh / 2245kg / adaptive suspension / rear E-LSD / carbon prop shaft / RM818,000



Powertrain

A new 4L V8 twin turbo, taken from the DB11 and Vantage is based on AMG's M177 as seen in the E63S, then tuned to sound and respond like an Aston would. It makes 550ps / 700nm and enables the DBX to leap from zerotohundred in 4.5 secs on to a top speed of 291kmh

Drivetrain

A 9 speed torque converter automatic and 4WD drivetrain sends power to all wheels. There's is an active central differential to decide how power is distributed front and rear, while a rear electronic LSD bestow the SUV DBX with sports car grip in the corners.

Adaptive Suspension

The adaptive suspension is a combination of a triple volume air suspension and electronic dampers, powered by new 48v electric anti roll control system (eARC). This system can exert 1,400Nm of force per axle which actively keep the DBX leveled and bestows it with greater range of abilities. It can also raise or lower ride heights by 45mm and 50mm respectively.

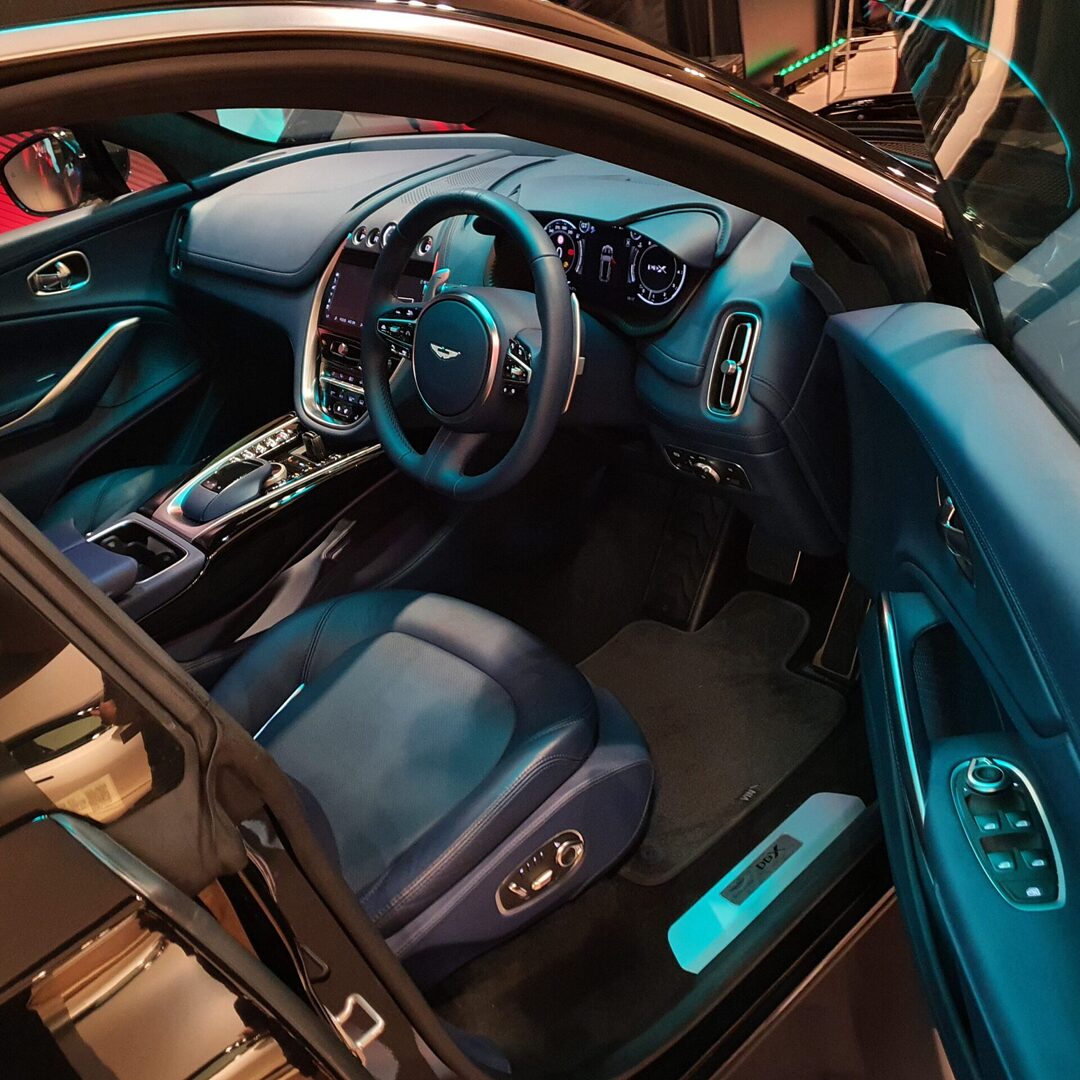

Inside

The 5 seater DBX feature a full length glass panaromic roof and frameless doors. The cabin is mostly made of wood, metal and glass. Its seats are trimmed in full grain leather from Bridge of Weir while the headlining are upholstered in Alcantara.

Screen wise, there's a 12.3" TFT for its instrument cluster and a 10.25 TFT for the center console. There is a 360 degree camera system on board, 64 colour ambient lighting and Apple CarPlay is included as standard. The DBX posses 632L of boot space and the folding seats split 40:20:40.



“Aston Martin has boldly ventured into unchartered territory with the addition of an SUV that has all the brand’s trademark luxuries combined with dynamic sports car capabilities. The DBX’s striking design echoes the unmistakable style of Aston Martin’s iconic sports cars and is matched by its impressive versatility in performance. It has already sparked great interest worldwide and we’re thrilled to now offer this dynamic model in Malaysia,” said Mr. Kumara Sooriar Sivanasan, General Manager of Aston Martin Kuala Lumpur.

Body
Five-door SUV body style
Bonded aluminium bodyshell
Aluminium & composite body panels
Clamshell bonnet with twin vents
Signature DB front grille
Signature light air duct with daytime running lights
Signature rear light blade
Rear aero wing
Flush fit door handles
Satin chrome trim - window surround & side strakes
Aston Martin wings & wordmark
Frameless doors with flush glazing and hidden seals
Panoramic glass sunroof
Roof rails

Engine

4.0-litre V8 Twin Turbo
Engine capacity: 3,982cm³
Bore: 83mm
Stroke: 92mm
Compression ratio 8.6:1
All-alloy construction
32-valve, quad overhead camshaft
Dual variable camshaft timing
Variable electronic turbo wastegate control
Water-to-air charge cooling
Cylinder deactivation system
Front mid-mounted engine position
Active valve exhaust system

Performance

Engine power: 550PS (542bhp / 405kW) @ 6,500rpm
Engine torque: 700Nm (516 lb ft) @ 2,200-5,000 rpm
Specific output: 138PS/litre (136bhp/litre)
Acceleration: 0-60mph in 4.3 seconds
Acceleration: 0-62mph (0-100 km/h) in 4.5 seconds
Maximum Speed: 181mph / 291km/h

Transmission & Drivetrain

9-speed automatic gearbox
Engine mounted gearbox
Electronic shift-by-wire control system
Lightweight, one-piece carbon fibre propeller shaft
Electronic active centre transfer case
Electronic rear limited-slip differential
Adaptive drive modes (4 on-road, 2 off-road)

Steering

Electric power-assisted, rack & pinion steering system (EPAS)
Speed-dependent steering with 14.4:1 ratio
2.6 turns lock-to-lock

Suspension

Cast aluminium suspension & subframe technology
Front: Independent double wishbone
Rear: Multi-link
Adaptive triple chamber air suspension
Variable ride height (raised by up to 45mm or lowered by 50mm)
Electronic active anti-roll control system (48-volt eARC)

Wheels & Tyres

22” alloy wheels
Wheel size: Front 10J x 22”, Rear 11.5J x 22”
Tyres: Pirelli P Zero, Front 285/40 YR22, Rear 325/35 YR22
Tyre pressure monitoring system (TPMS)

Braking

Front: Ventilated steel brake discs, Ø410mm with 6-piston aluminium calipers
Rear: Ventilated steel brake discs, Ø390mm with sliding-piston aluminium calipers
Electric Parking Brake (EPB)
Auto park brake hold
Anti-lock Braking System (ABS)
Electronic Stability Control (ESC)
Traction Control (TC)
Emergency Brake Assist (EBA)
Roll-over Stability Control (RSC)
Hill Descent Control (HDC)
Hill Start Assist (HSA)

Safety

Adaptive Cruise Control (ACC)
Speed limiter
Forward Collision Warning (FCW)
Autonomous Emergency Braking (AEB) with pedestrian detection
Lane Departure Warning (LDW)
Lane Keep Assist (LKA)
Lane Change Warning (LCW)
Rear Cross Traffic warning (RCT)
Traffic Sign Recognition (TSR)
Blind Spot Warning (BSW)
Door Opening Warning (DOW)
Emergency call (market specific)
Airbags (front, side & curtain)
Seatbelt pre-tensioners & status indicator
ISOFIX child seat attachments (rear outer seats)

Dimensions

Length: 5,039mm
Width (body): 1,998mm
Width (folded mirrors): 2,050mm
Width (including mirrors): 2,220 mm
Height: 1,680mm
Wheelbase: 3,060mm
Fuel tank capacity: 85 litres (18.7 Imp. Gal. / 22.5 US Gal)
Luggage capacity: 632 litres (plus up to 62 litres underfloor storage)
Weight: 2,245kg (4,940lb) kerb weight (DIN)
Weight Distribution: 54%/46% (front/rear)
Towing weight: 2,700kg (5,940lb)
Approach angle: 22.2° (25.7° max ride height)
Departure angle: 24.3° (27.1° max ride height)
Breakover angle: 15.1° (18.8° max ride height)
Wading depth: 500mm
Ground clearance: 190mm (235mm max ride height)
Turning circle: 12.4 metres (kerb-to-kerb)

Standard Specification

Full grain ‘Caithness’ leather interior trim*
Alcantara headlining & panoramic roof blind*
Piano Black wood veneer trim (centre console)
Satin chrome brightware
Front seats - 12-way electric adjustment
Front seats & door mirrors - 3-position memory function
Rear seats - 3 seat, 40:20:40 split-folding
Heated seats (front & rear)
Power folding door mirrors
Auto-dimming & heated exterior mirrorr

Standard Specification

Keyless entry
Keyless start/stop button
Automatic 3-zone climate control
Auto-dimming interior rear view mirror
Electric windows
Acoustic laminated side glass
Double sunvisors (windscreen & side windows)
Illuminated vanity mirrors
Cabin courtesy lighting
Ambient lighting (64 colours, dual zone)
Rain sensing windscreen wipers
Power tailgate
Heated rear window
Front and rear parking sensors with visual indicator
360° camera system with deploying rear camera
Carpet & carpet mats with nubuck binding
Interior brightware - satin chrome
Sports pedals - satin chrome
Door sill plaques - anodised with 'Aston Martin' wings
Steering wheel - sport design
Electric steering column tilt & reach adjustment
Front centre armrests - twin adjustable
Bi-LED headlights
Automatic headlights with Auto High Beam (AHB)
LED Daytime Running Lights (DRL)
LED tail lights – red
LED centre high mounted stop light
LED rear foglights
Active rear brake lights
Approach illumination

Technology & Audio

12.3” TFT driver information display
10.25” TFT central display
Aston Martin Premium Audio System (800 watts, 14 speakers)*
AM/FM/DAB radio
SiriusXM Satellite radio (US/CA only)
USB ports (x4)
12v charging sockets (x3)
SD Card port
Bluetooth mobile phone connectivity with audio streaming
Mobile phone operating system connectivity via Apple CarPlay
Voice control
Satellite navigation system (HDD)
Rotary infotainment system interface
Battery conditioning connection
Ambient lighting (64 colours, dual zone)
*Standard specification may differ by region

OPTIONAL SPECIFICATION

Interior

Full grain ‘Caithness’ leather interior trim - extended colour choice
Full grain ‘Caithness’ leather & Wool Felt interior trim
Leather headlining with Alcantara ® roof blind
Carpet & carpet mats - extended colour choice
Contrast stitching
Front seats - 16-way electric adjustment
Ventilated seats (front & rear)
Heated steering wheel
Luxury duotone steering wheel
Seat detailing: choice of quilting, perforation & broguing
Seat logos: choice of embroidery or leather embossing with Aston Martin wings or DBX logo
Dark Satin Chrome brightware
Veneer: Light Ash Open Pore Wood
Veneer: Dark Ziricote Open Pore Wood
Veneer: Piano Ivory Wood
Veneer: Gloss Flax Composite
Veneer: Gloss Twill Carbon Fibre
Veneer: Gloss Bronze Metal Mesh
Veneer: Solid Walnut

Exterior

22" 'Sport' design wheels - choice of 3 finishes
22” 'Ribbon design wheels - choice of 3 finishes
All season & Winter tyres
Painted brake calipers (choice of 9 colours)
Paint colours - extended colour palette
Privacy glass

Gloss Black exterior features
Carbon Fibre exterior features
Bonnet blades (choice of finishes)
Fender panel (choice of finishes)
Smoked Grey rear tail lights

Functional
Power tailgate with gesture control
Park assist system
Designer keys (stainless steel & glass)
Touchpad controller
Garage door opener
Tow bar


ixeo

4,000 RPM
Senior Member

ixeo

4,000 RPM
Senior Member
Jun 26, 2005
4,714
3,034
3,213
KL, Malaysia

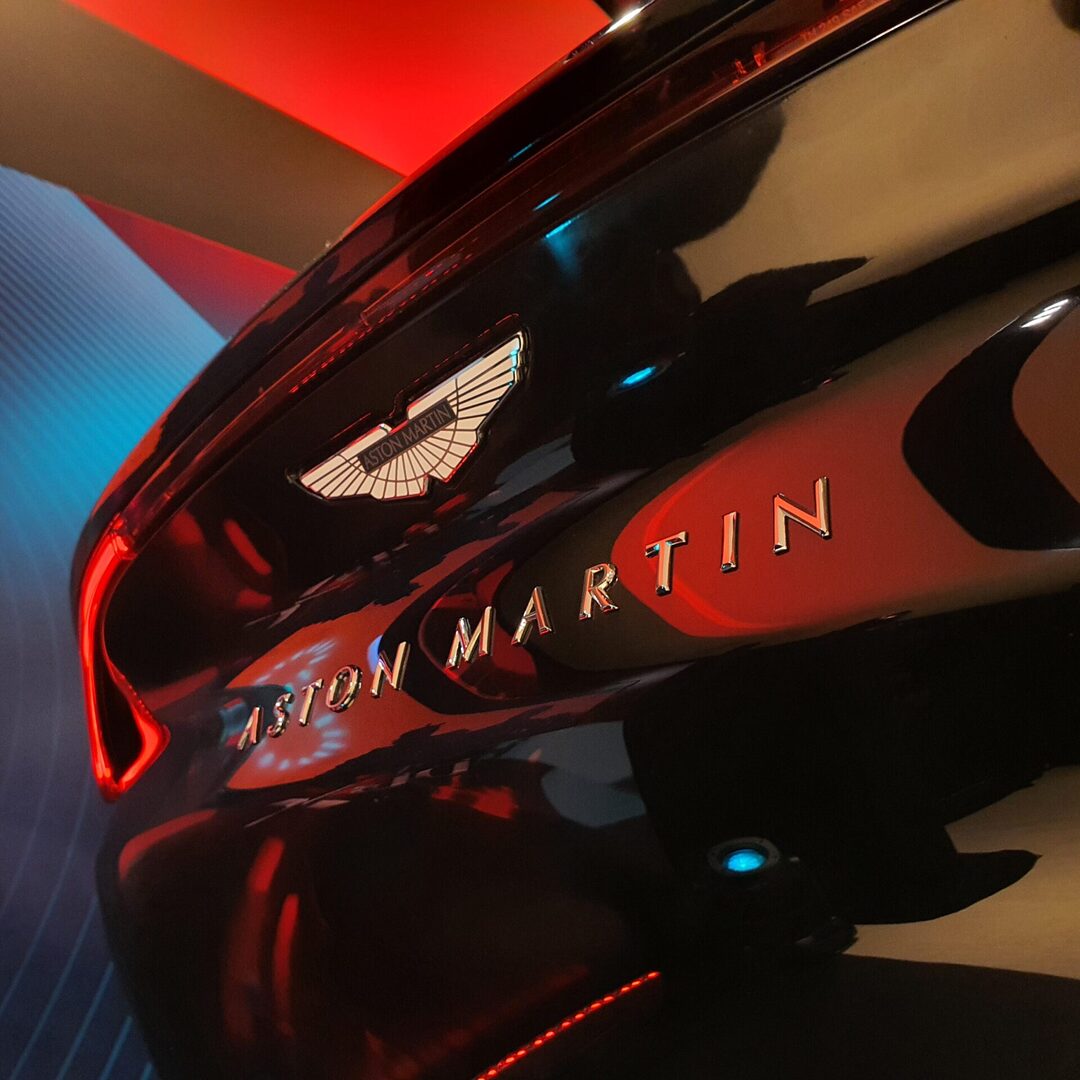

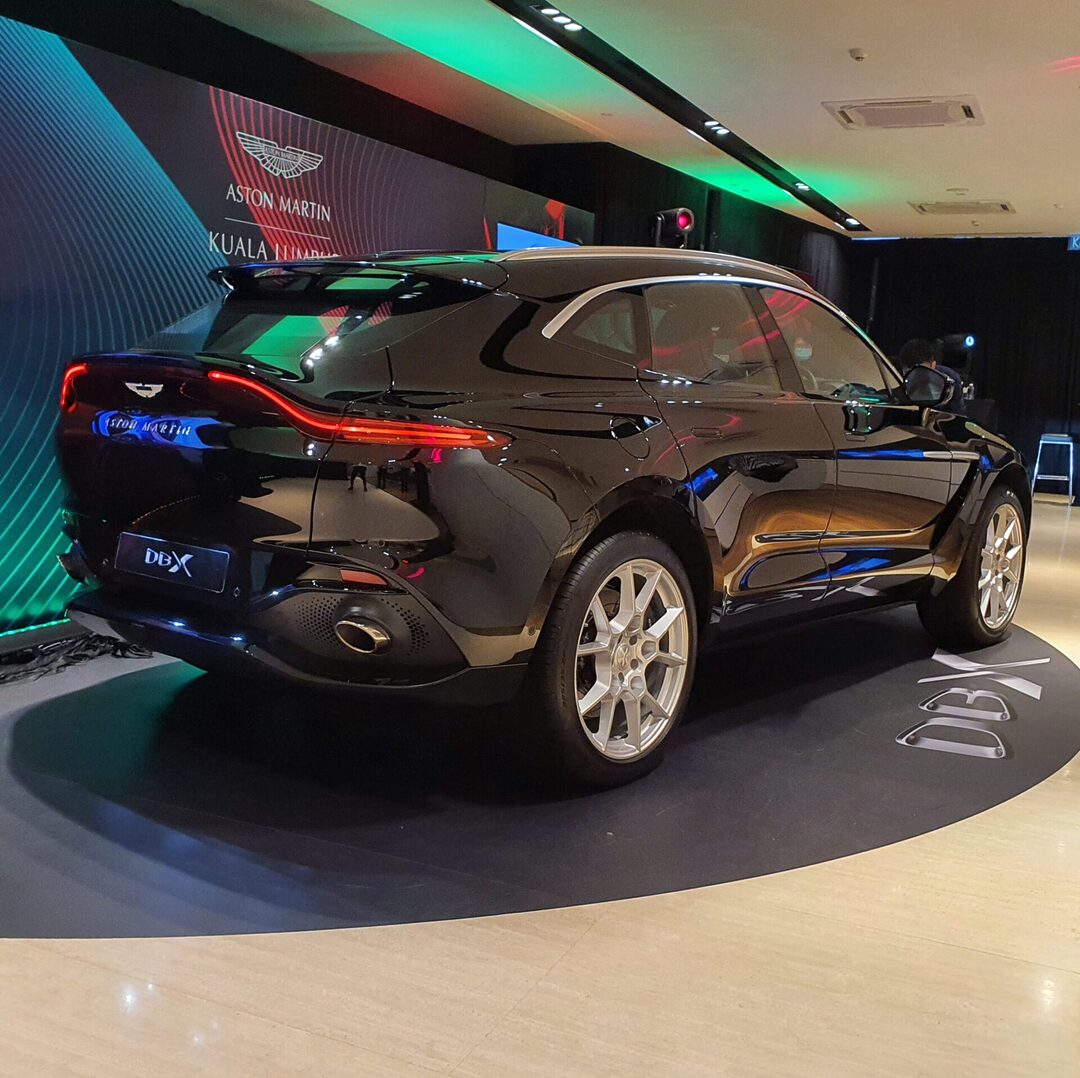

The rear looks like a sad face.
The front looks like a porky Aston Martin. Like, ate too much during MCO and didn't do any exercise.

No extra angles of the front photos?


Tom

TIMETOATTACK
Helmet Clan

Tom

TIMETOATTACK
Helmet Clan
Jul 6, 2000
5,458
3,159
5,213
Kuala Lumpur
The rear looks like a sad face.
The front looks like a porky Aston Martin. Like, ate too much during MCO and didn't do any exercise.

No extra angles of the front photos?
yeah, the display area wasn't the most conducive so the limited photos

looks better in the open
