Alpine procesor, alpine 7998r,poweramper class a,pg route 66

[vickyz]

ALL NICE ITEMS FOR SALE....016 2510646

RARE ALPINE PRA-H400 (BRAND NEW. ...JAPAN MADE,BUILD IN CONTROLLER ) RM3400

General
18 Bit Hybrid D/A Converters
4 Volt Output
Digital Fiber Optic Inputs
2 Way/3 Way Mode Switch
Selectable Non-Fading Output
LCD Parameter Display
EEPROM Back-up Memory
Tone Control Bypass Switch
Digital Time Correction
Digital Crossover
18dB/Octave Highpass and Bandpass
Slopes
24dB/Octave Subwoofer Slope
Daisy Chain Capacity (2 PRA-H400s)
DC-DC Power Supply
S.T.A.R. Circuitry
Gold Plated Terminals

Number of outputs .................. 6 pairs(High,Mid,Low for Front and Rear)
Number of D/A converters ........... 6
DAC resolution ..................... 18bit hybrid
Number of Presets* ................. 4(User Selectable)
Time Correction Control Range ......0 to 30mS(0.3mS steps)
Crossover Frequencies(1/6 octave steps) ...(Low, Mid-Low) 31.5Hz—400Hz (Mid-High, High) 200Hz—10kHz
Crossover Slopes ... (Low) 24dB/octave (Mid, High) 18dB/octave
Output Level Control(1dB steps) .... (Mid, High) 0 to -12dB (Low-Non Fading) 0 to +12dB ~ (Low-Fading) 0 to -12dB
Bass Control Range .......... ±10dB at 30Hz
Treble Control Range .... ±10dB at 10kHz
Frequency Response ....... 10Hz—20kHz(+0,-1dB)
Total Harmonic Distortion ........ 0.03%(at 1kHz)
Stereo Separation ..........80dBA(at 1kHz)
Signal to Noise Ratio ..... 108 dBA (with optical digital input and tone control bypassed)
Input Sensitivity(analog) ...... 850mV
Input Impedance(analog) .... Greater Than10k ohms
Output Voltage(tone control bypassed) ........4V
Output Impedance ....... Less Than1k ohms
Power Requirement .......... 11—16V DC(negative ground)
Main Chassis Size(WxHxD) ..... 240mmx50mmx160mm(9-7/16”x1-15/16”x6-1/4”)
Main Chassis Weight ....... 1.5kg

PHOENIX GOLD ROUTE 66 - RM2400

Its a M25 and an M44 under one sink.


M25 section:
2 x 25W @ 4 ohms (12V - 0.02% THD)
2 x 65W @ 4 ohms (14.4V)
2 x 70W @ 2 ohms (14.4V)
2 x 70W @ 1 ohm (14.4V - Current limited)
1 x 140W @ 4 ohms bridge (14.4V)
1 x 140W @ 2 ohms bridge (14.4V - Current limited)
Fuse: External 30A
M44 section:
4 x 40W @ 4 ohms (12V)
4 x 55W @ 4 ohms (13.8V)
4 x 110W @ 2 ohms (13.8V)
2 x 160W @ 4 ohms bridge (13.8V)
Fuse: External 30A

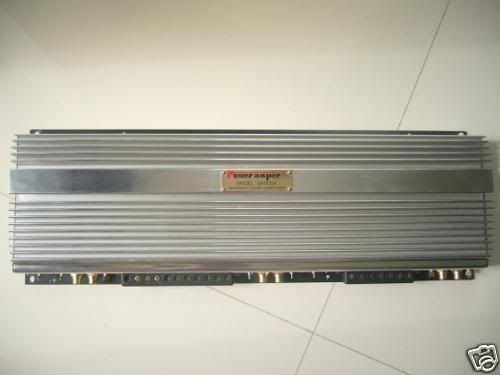

POWERAMPER QA200X 6CHANNEL CLASS A AMP - RM2900

alpine 7998R -Rm1400(booked)

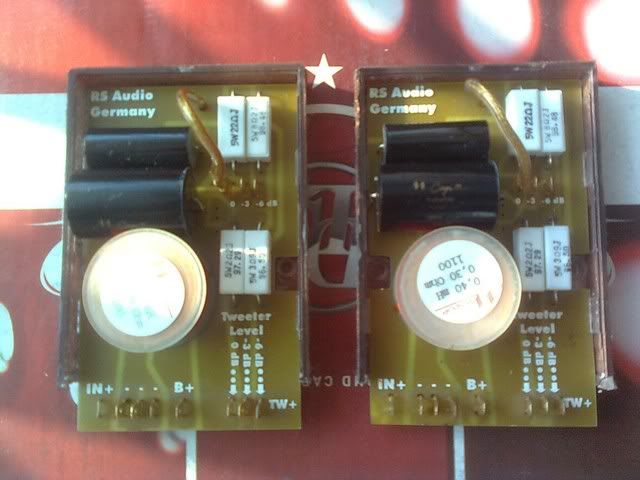

RS AUDIO SPL MUNDORF CROSSOVER - 300



[kingman99]

great stuff bro vickyz...It's a spanking new PG Route 66..BUMP for you..



[vickyz]

Pg route 66 sold................
Rs audio crossover sold............
