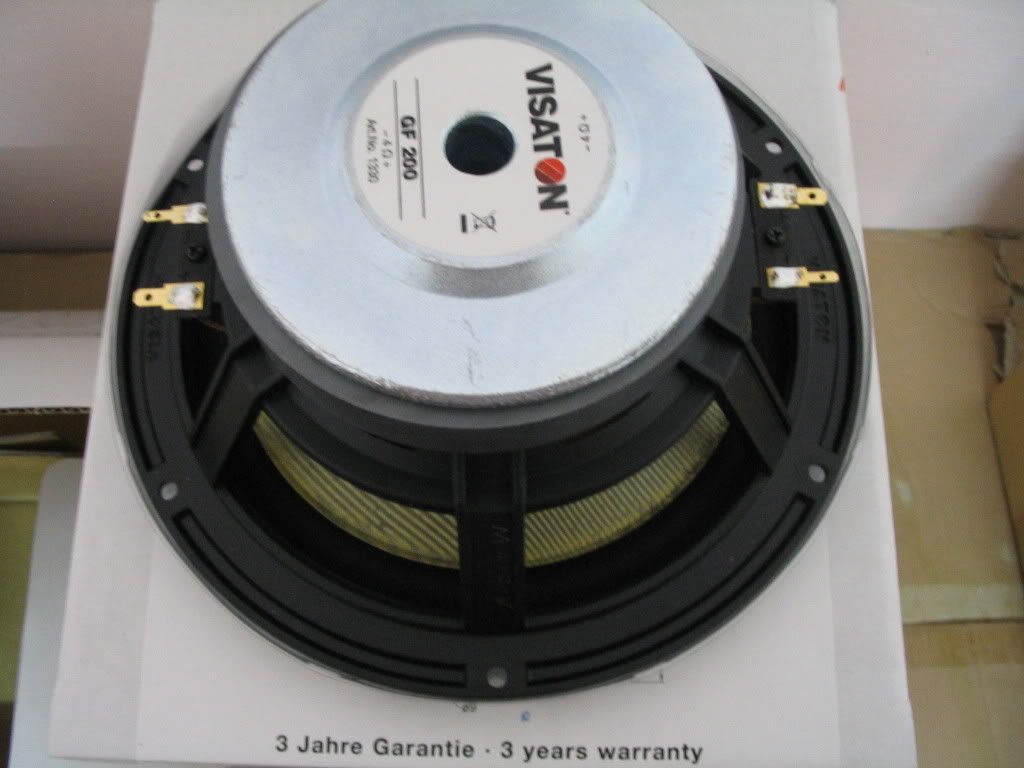

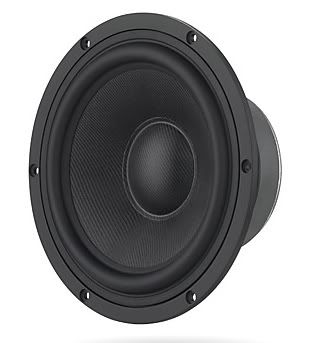

20 cm (8") High-End woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround. Designed for multi-purpose applications due to 2 x 4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration. The long stroke voice-coil in conjunction with the extended rear pole plate, the vented damper, the vented magnet and the capton voice-coil carrier guarantees long strokes and highest power handling.
Please Contact me at 012-9142998
COD area: PJ, Subang, Puchong, USJ/Sunway
Technical Data: Rated power 120 W Maximum power 180 W Nominal impedance Z (1) 4 Ohm
(2) 8 Ohm
(3) 2 Ohm Frequency response fu–8000 Hz (fu: Lower cut-off frequency depending on cabinet) . Mean sound pressure level (1) 85 dB (1 W/1 m)
(2) 88 dB (1 W/1 m)
(3) 88 dB (1 W/1 m) Maximum cone displacement +/−10 mm Resonance frequency fs (1) 34 Hz
(2) 30 Hz
(3) 35 Hz Magnetic induction 1,3 T Magnetic flux 930 µWb Height of front pole-plate 6 mm Voice coil diameter 38 mm Height of winding 18 mm Cutout diameter 190 mm Net weight 2,5 kg D.C. resistance Rdc (1) 2,9 Ohm
(2) 5,8 Ohm
(3) 1,4 Ohm Mechanical Q factor Qms (1) 4,51
(2) 4,12
(3) 4,33 Electrical Q factor Qes (1) 0,93
(2) 0,37
(3) 0,44 Total Q factor Qts (1) 0,77
(2) 0,34
(3) 0,39 Equivalent volume Vas (1) 62 l
(2) 68 l
(3) 57 l Effective piston area Sd 214 cm² Dynamically moved mass Mms 25 g Force factor Bxl (1) 4,6 Tm
(2) 9,2 Tm
(3) 4,6 Tm Inductance of the voice coil L (1) 0,4 mH
(2) 1,1 mH
(3) 0,3 mH
http://www.visaton.com/en/chassis_zubehoer/tiefton/gf200_2x4.html
Please Contact me at 012-9142998
COD area: PJ, Subang, Puchong, USJ/Sunway
Technical Data: Rated power 120 W Maximum power 180 W Nominal impedance Z (1) 4 Ohm
(2) 8 Ohm
(3) 2 Ohm Frequency response fu–8000 Hz (fu: Lower cut-off frequency depending on cabinet) . Mean sound pressure level (1) 85 dB (1 W/1 m)
(2) 88 dB (1 W/1 m)
(3) 88 dB (1 W/1 m) Maximum cone displacement +/−10 mm Resonance frequency fs (1) 34 Hz
(2) 30 Hz
(3) 35 Hz Magnetic induction 1,3 T Magnetic flux 930 µWb Height of front pole-plate 6 mm Voice coil diameter 38 mm Height of winding 18 mm Cutout diameter 190 mm Net weight 2,5 kg D.C. resistance Rdc (1) 2,9 Ohm
(2) 5,8 Ohm
(3) 1,4 Ohm Mechanical Q factor Qms (1) 4,51
(2) 4,12
(3) 4,33 Electrical Q factor Qes (1) 0,93
(2) 0,37
(3) 0,44 Total Q factor Qts (1) 0,77
(2) 0,34
(3) 0,39 Equivalent volume Vas (1) 62 l
(2) 68 l
(3) 57 l Effective piston area Sd 214 cm² Dynamically moved mass Mms 25 g Force factor Bxl (1) 4,6 Tm
(2) 9,2 Tm
(3) 4,6 Tm Inductance of the voice coil L (1) 0,4 mH
(2) 1,1 mH
(3) 0,3 mH
http://www.visaton.com/en/chassis_zubehoer/tiefton/gf200_2x4.html
