Hi,
Can someone post a picture of their internal fusebox diagram? The one next to the right foot. It's to tell you which fuse is for what.
One super accesories shop lost mine so i don't know which is which. Thanks in advance!
_____________________________________________________________
CASE CLOSED. REFER TO PICS. AE101 & AE111. tq

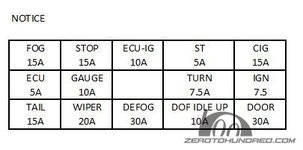

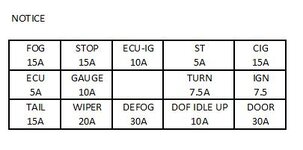

Left diagram = AE111
Right Picture = AE101
Can someone post a picture of their internal fusebox diagram? The one next to the right foot. It's to tell you which fuse is for what.
One super accesories shop lost mine so i don't know which is which. Thanks in advance!
_____________________________________________________________
CASE CLOSED. REFER TO PICS. AE101 & AE111. tq
Left diagram = AE111
Right Picture = AE101
Attachments
-
29.4 KB Views: 935
-
69.2 KB Views: 2,736
